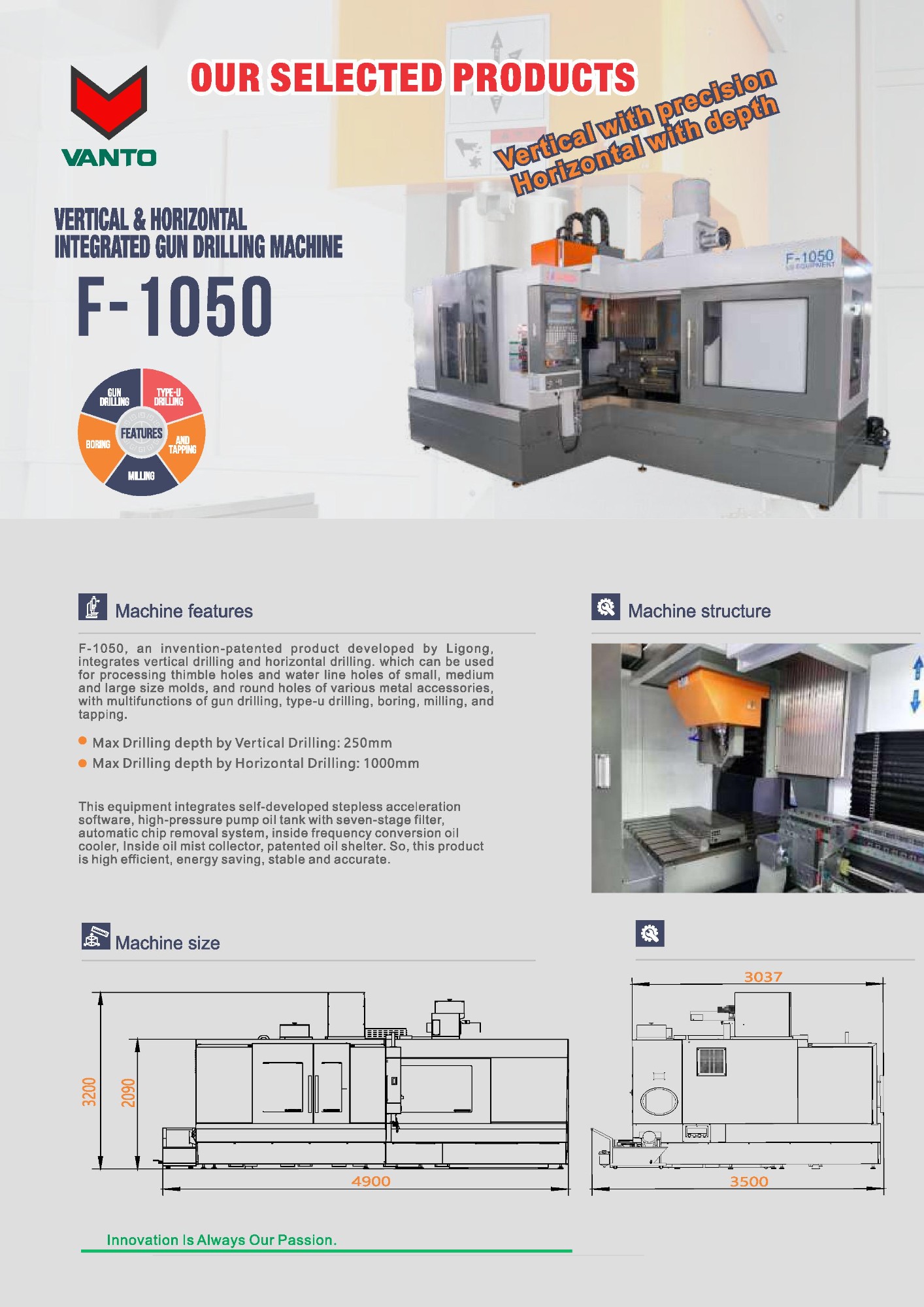

F-1050 Vertical & Horizontal Integrated Gun Drilling Machine

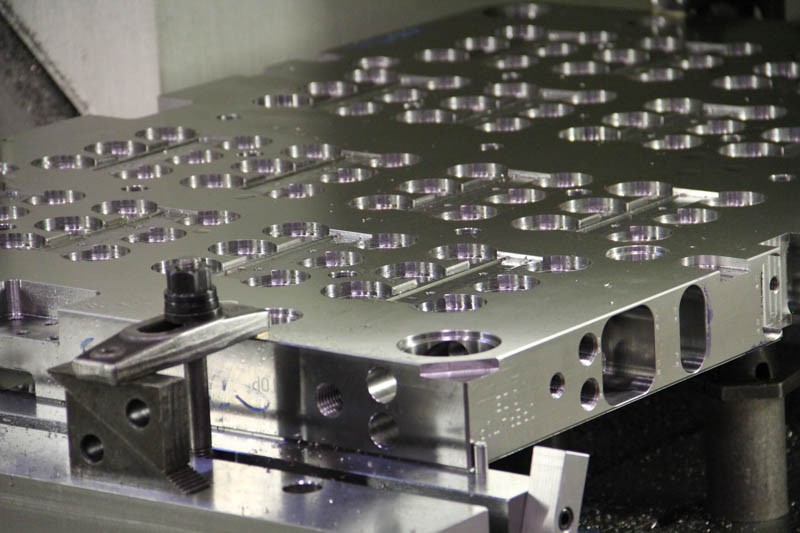

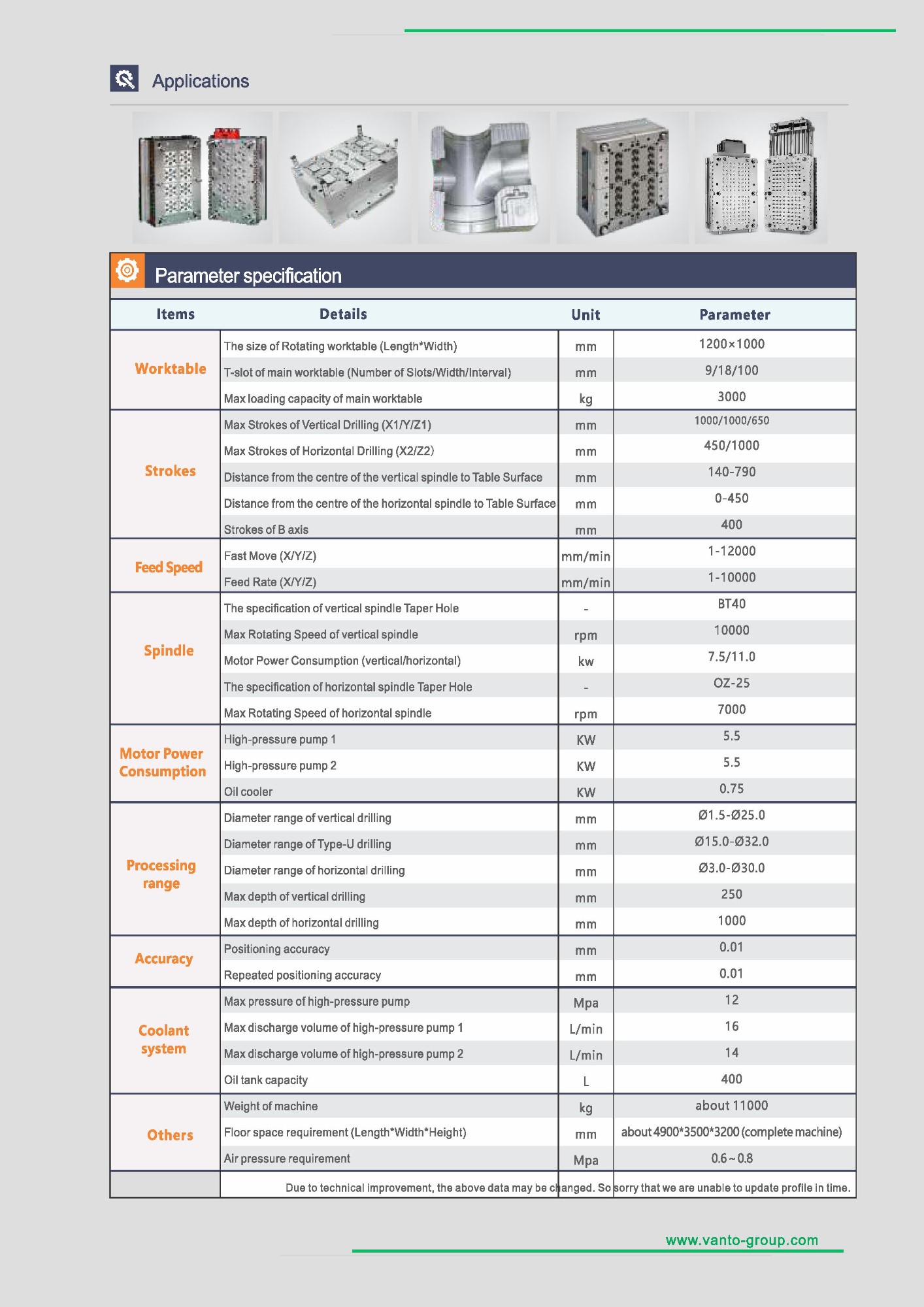

Worktable

Worktable   size (Length*Width)

mm

1200*1000

T-slot   (Number of Slots/Width/Interval)

9*18*100

 Max loading capacity

kg

3000

Strokes

Max   Strokes of Vertical Drilling (X/Y/Z1)

mm

1000/1000/650

Max   Strokes of Horizontal Drilling (X2/Z2）

mm

450/1000

Distance   from the centre of the vertical spindle to Table Surface

mm

 140-790

Distance   from the centre of the horizontal spindle to Table Surface

mm

0-450

Strokes   of B axis

mm

400

Feed   Speed

 Fast Move (X/Y/Z)

mm/min

1-12000

Feed Rate   (X/Y/Z)

mm/min

1-10000

Spindle

The   specification of vertical spindle Taper Hole

BT40

Max   Rotating Speed of vertical spindle

rpm

10000

Motor   Power Consumption (vertical/horizontal)

kw

7.5/11.0

The   specification of horizontal spindle Taper Hole

OZ-25

Max   Rotating Speed of horizontal spindle

rpm

7000

Accuracy

Positioning   accuracy

mm

0.01

Repeated positioning   accuracy

mm

0.01

Processing   range

Diameter   range of vertical drilling

mm

φ1.5-φ20.0

Diameter   range of horizontal drilling

mm

φ4.0-φ25.0

Max depth   of vertical drilling

mm

250

Max depth   of horizontal drilling

mm

1000

Cutting   Fluid Device

High   pressure pump maximum pressure

Mpa

12

Maximum   output of high pressure pump

L/min

16

Maximum   discharge volume of high pressure pump 2

L/min

14

Fuel tank   capacity

L

400

Others

Weight of   machine

kg

About 11000

Floor space   requirement (Length*Width*Height)

mm

4900*3500*3200

Air   pressure requirement

Mpa

0.6～0.8
