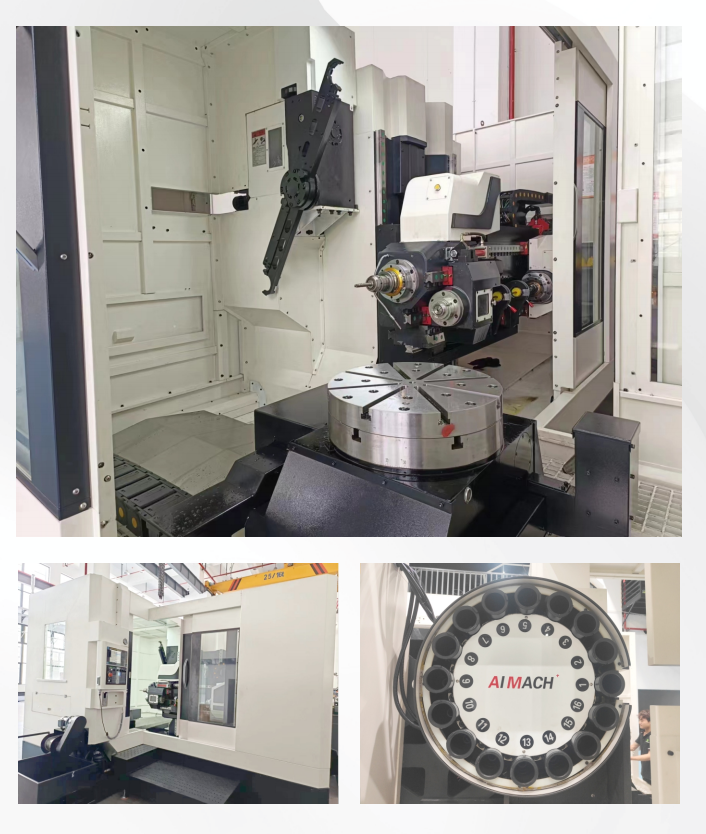

5 Axis Vertical Gun Drilling & Milling Multifunction Machine

5 Axis Vertical Gun Drilling And Milling Machine

Product Overview

The 5 Axis Vertical Gun Drilling Machine is a high-performance integrated processing equipment specially designed

for precision mold manufacturing and complex parts machining. With professional 5-axis linkage control technology

and vertical gun drilling structure, it realizes high-efficiency compound processing of deep hole drilling and milling,

providing stable and reliable processing solutions for precision manufacturing enterprises.

Main Application Fields

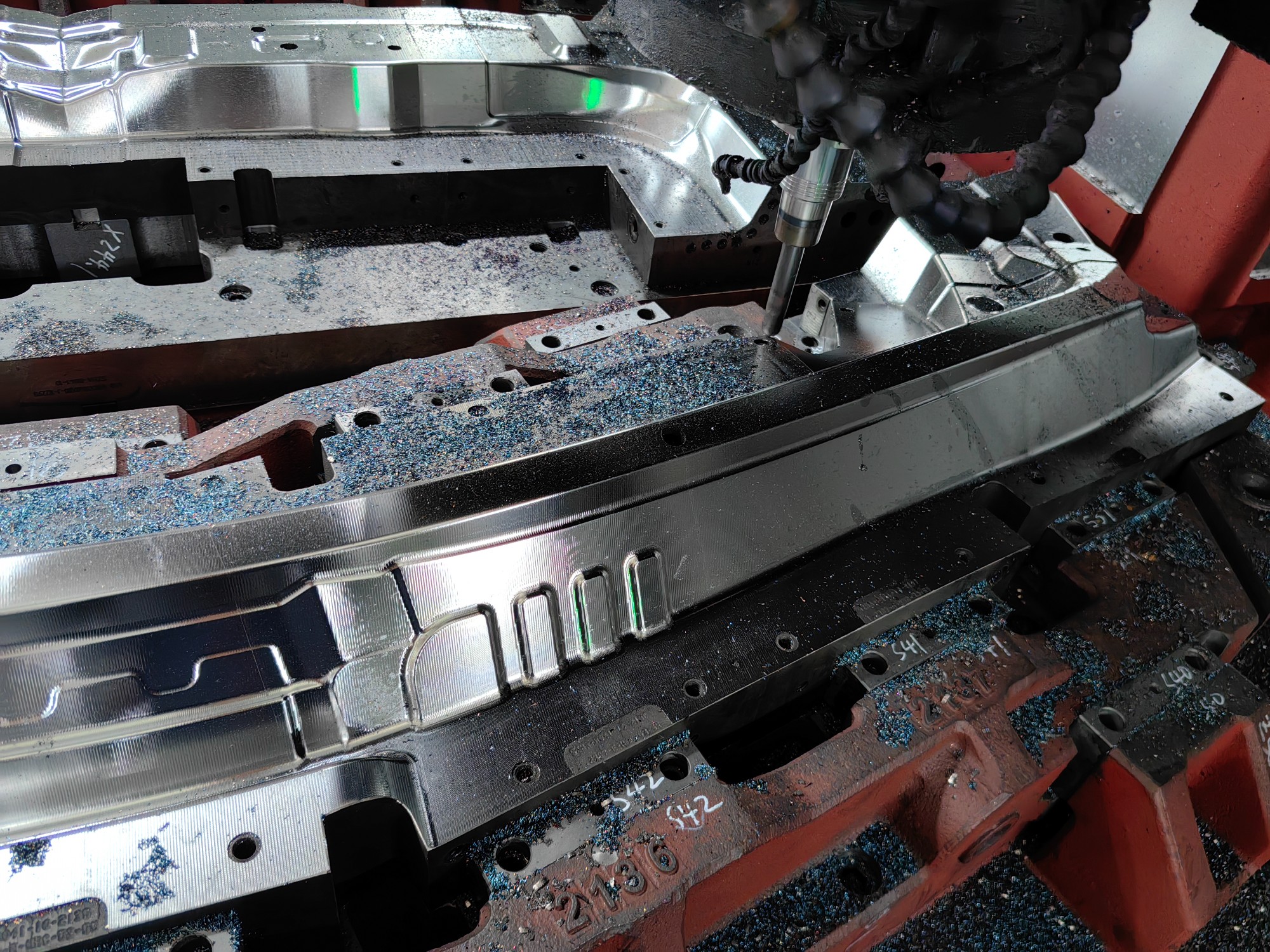

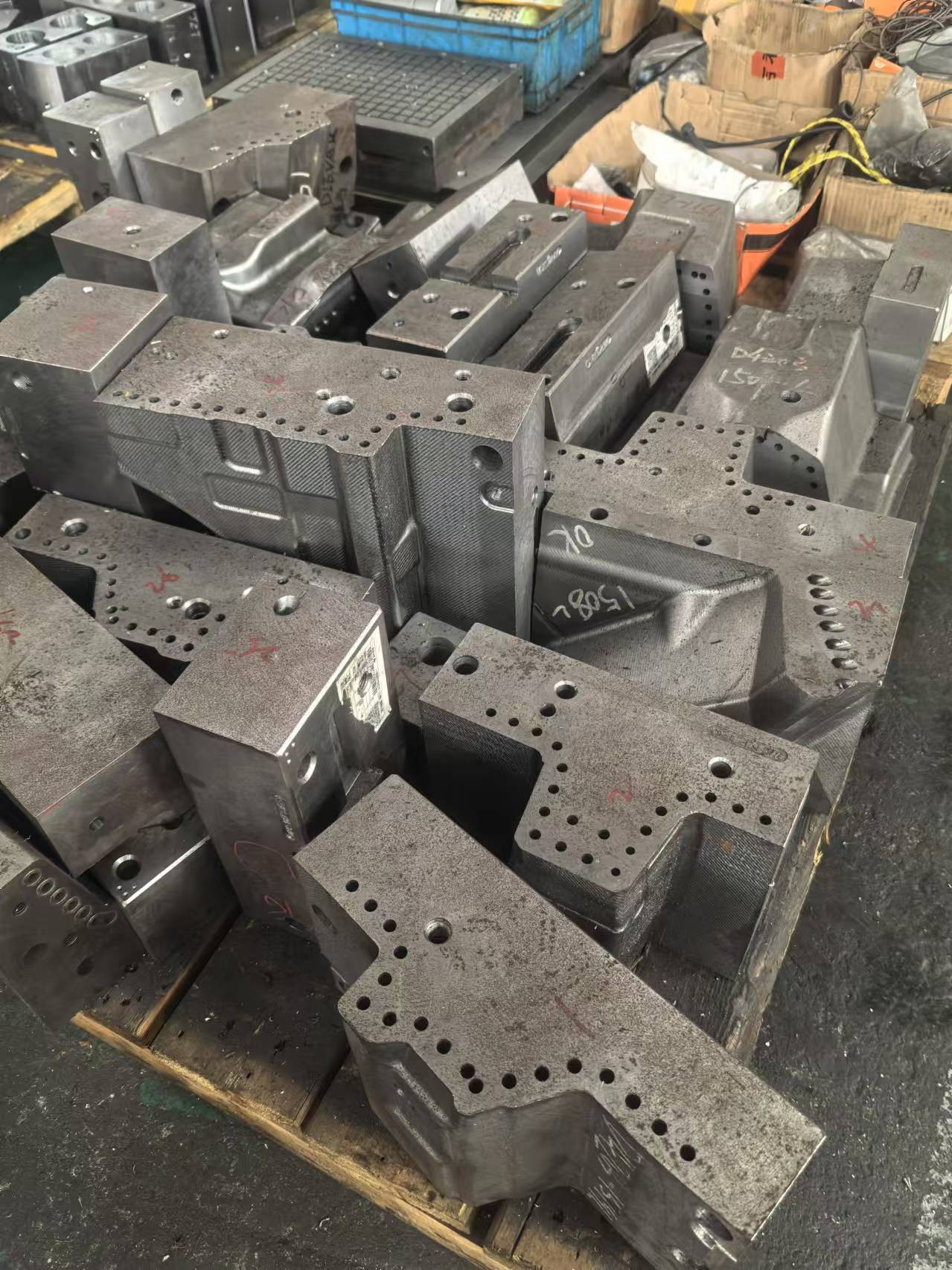

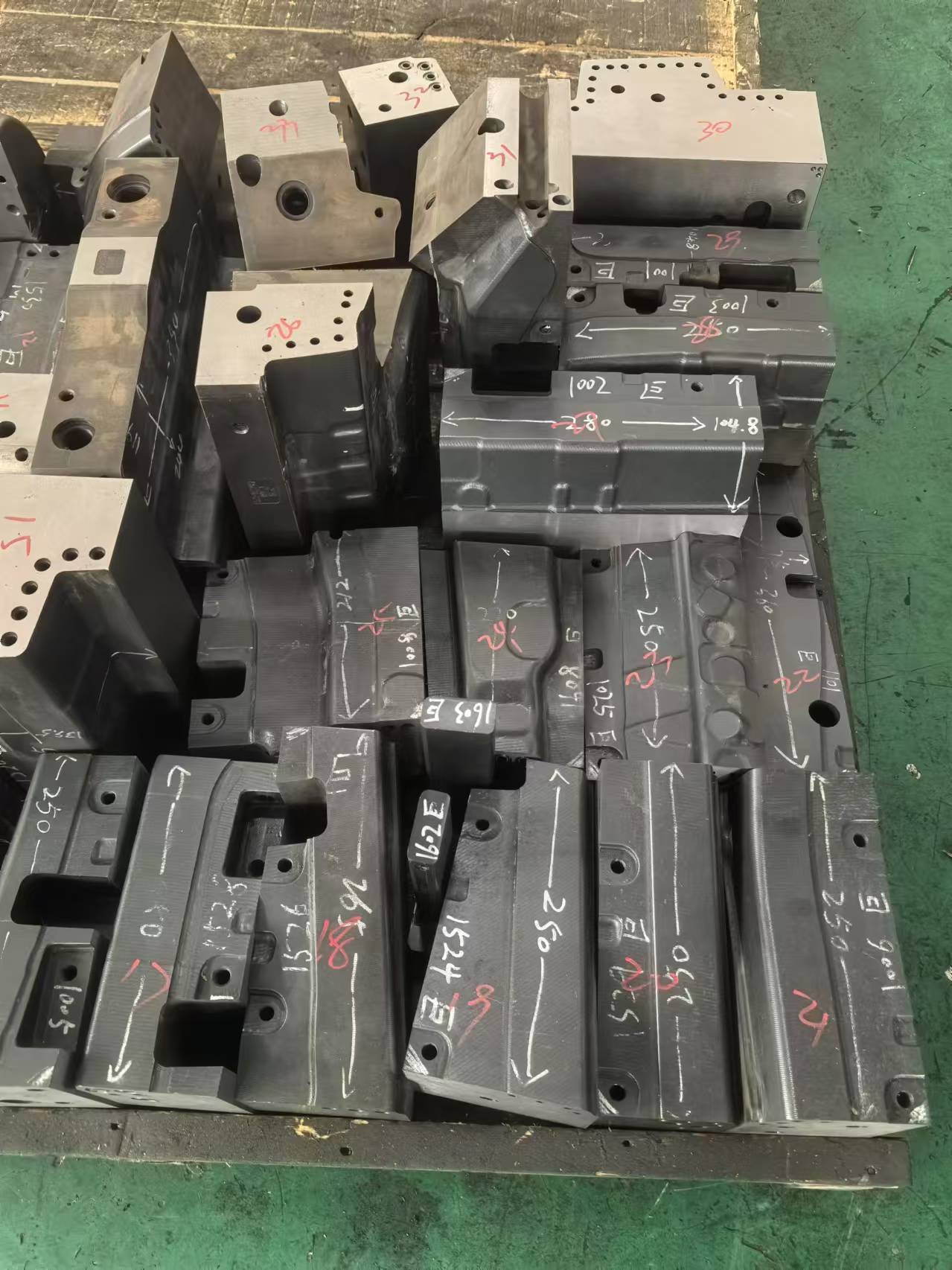

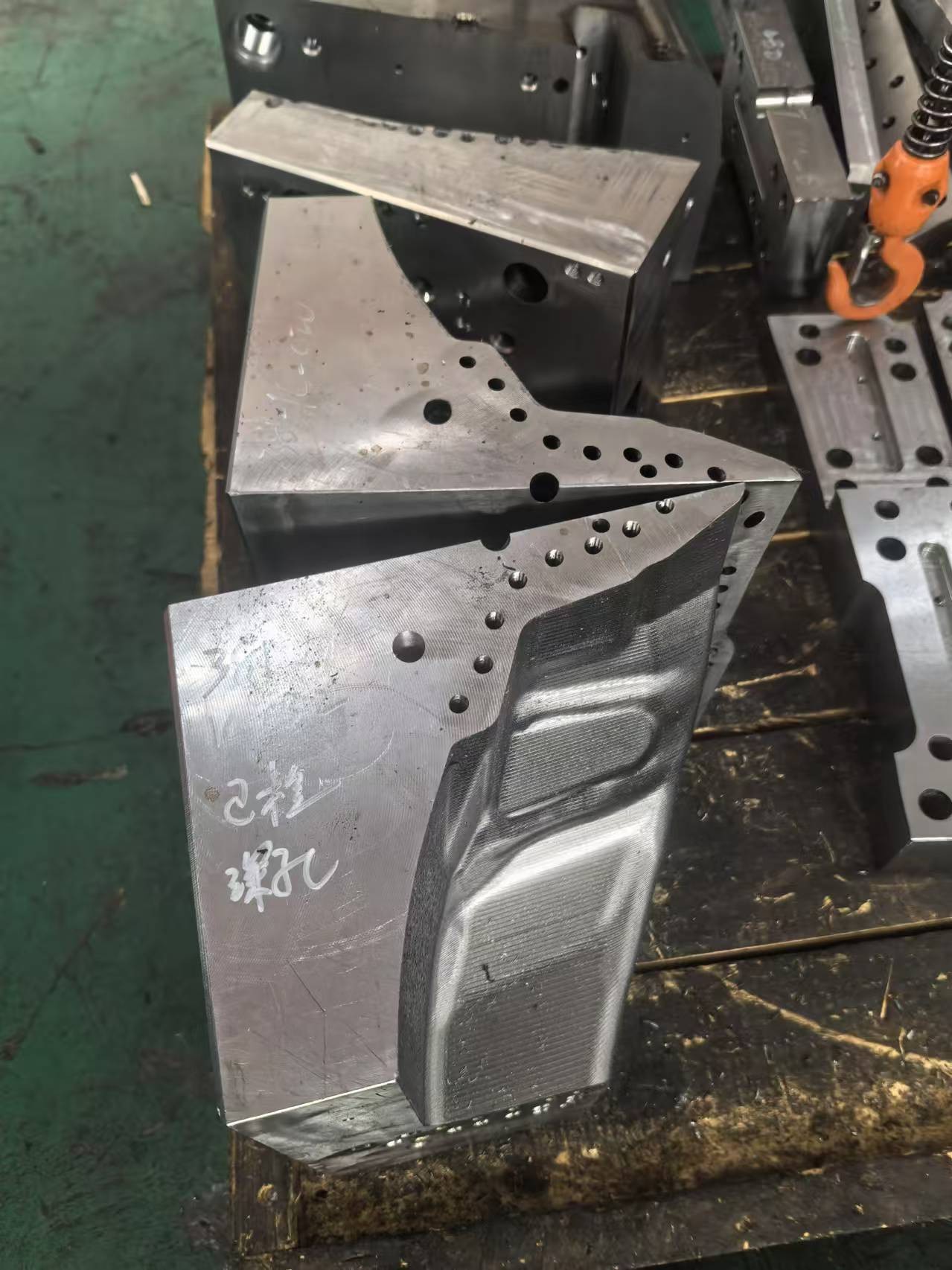

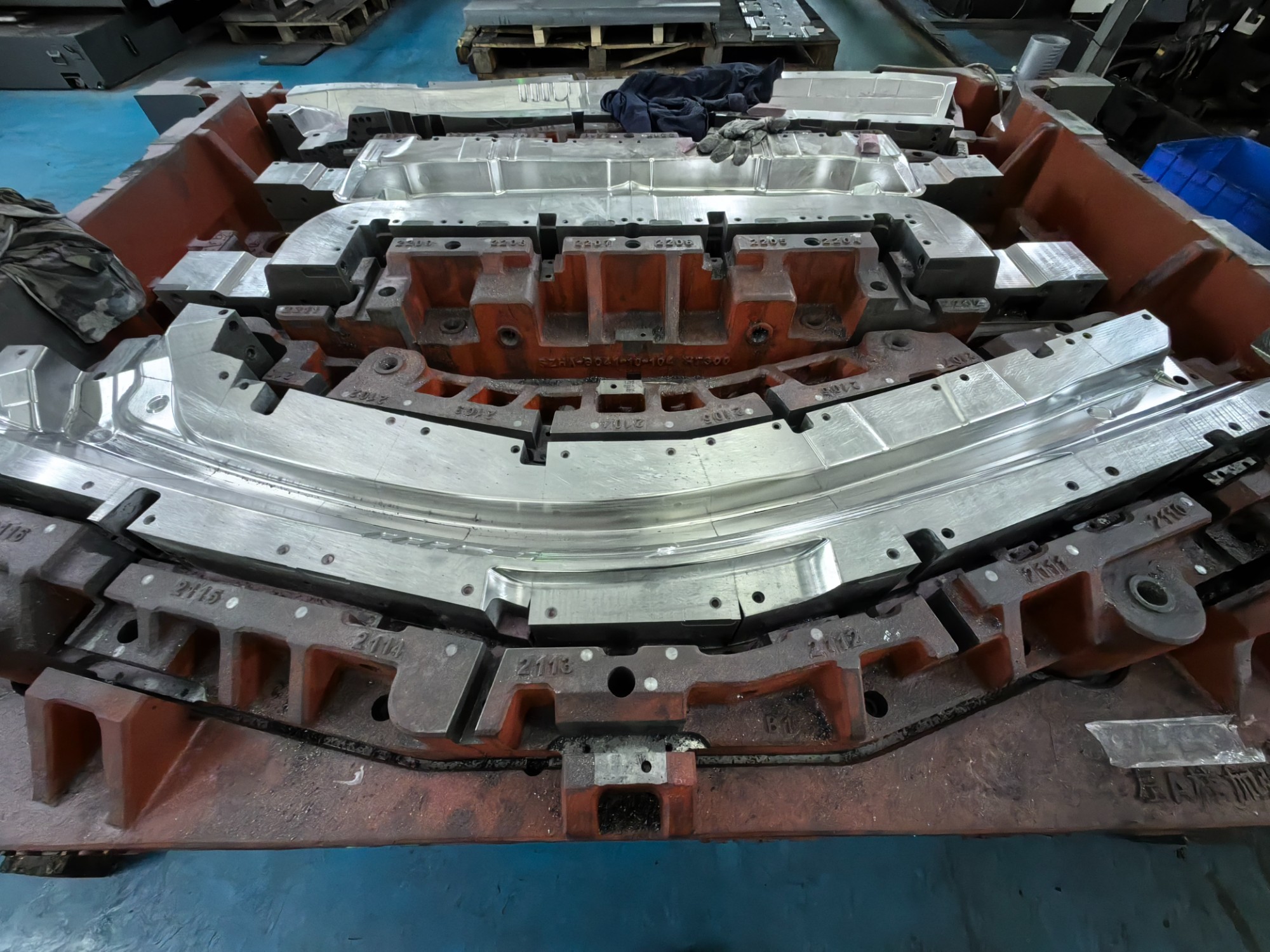

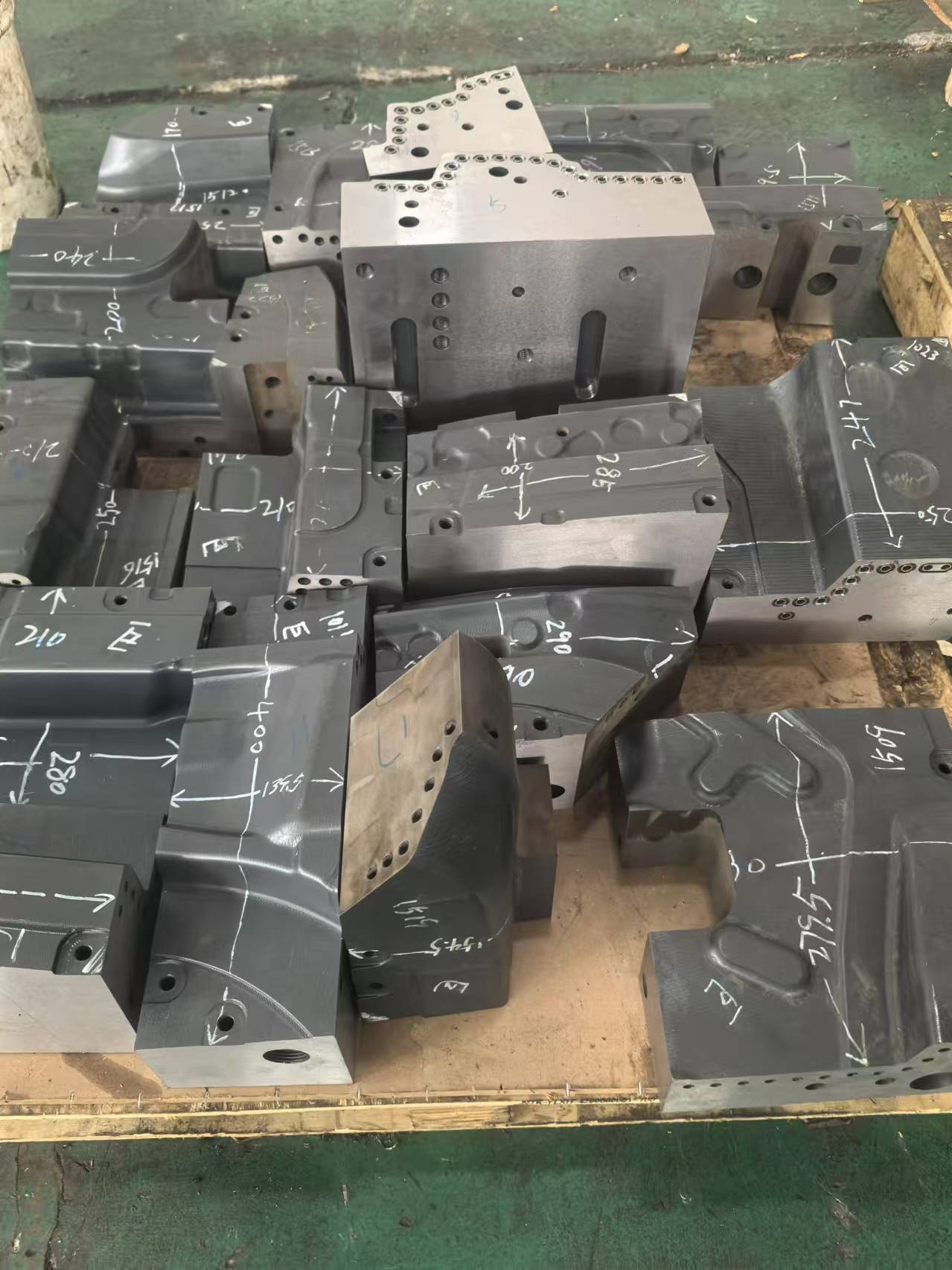

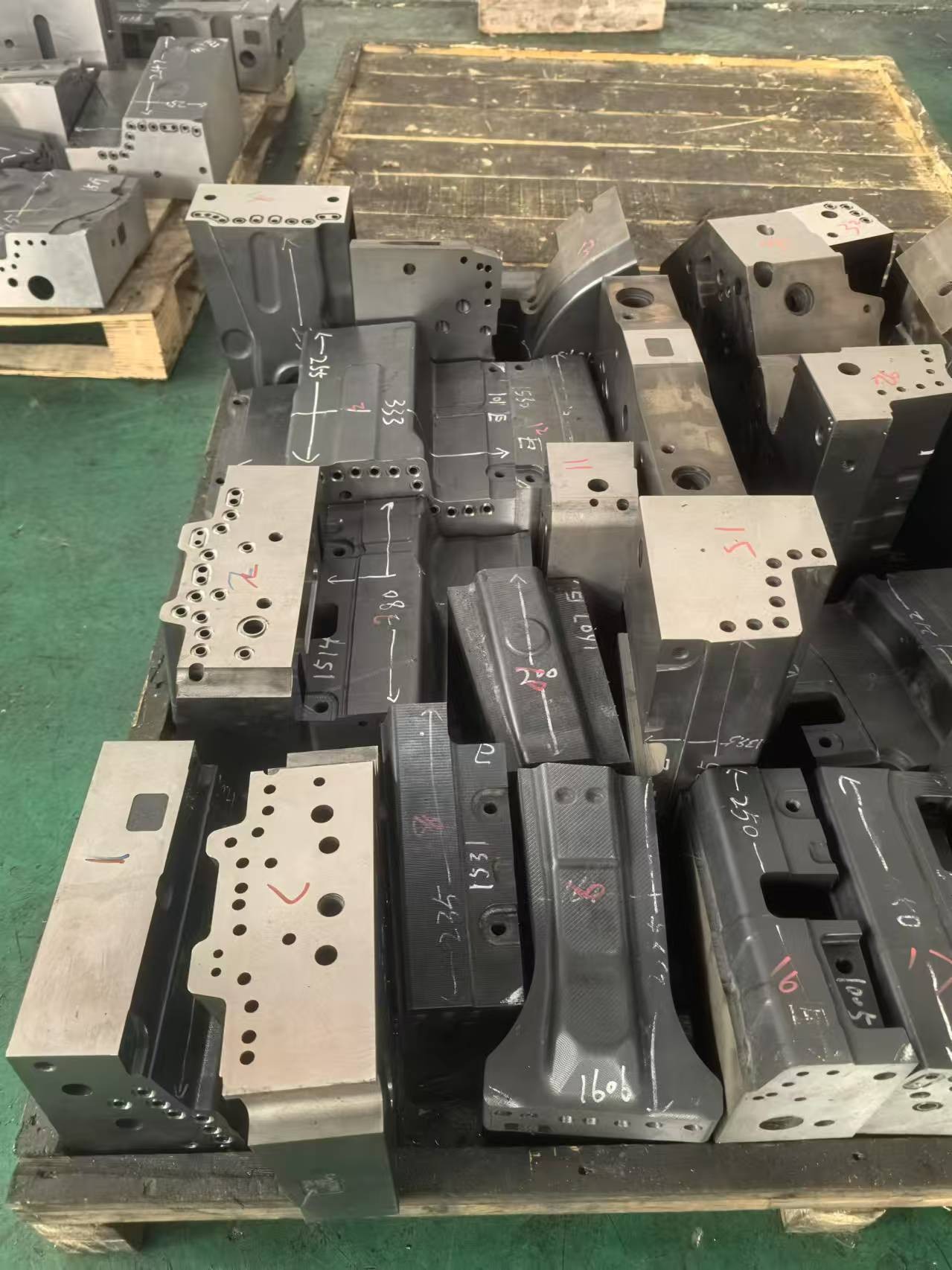

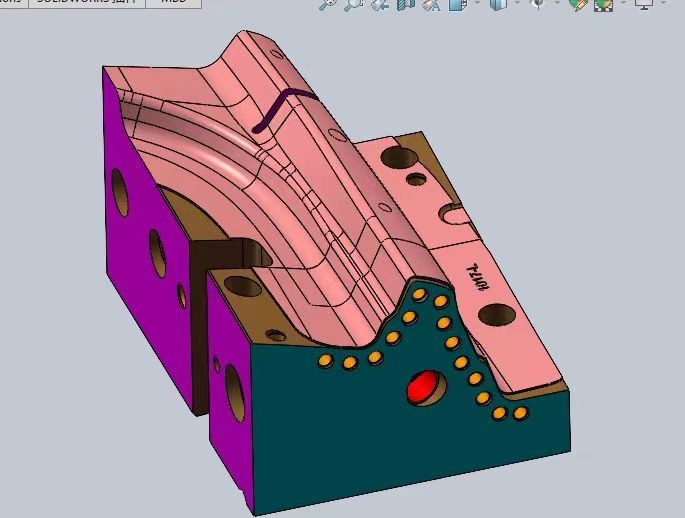

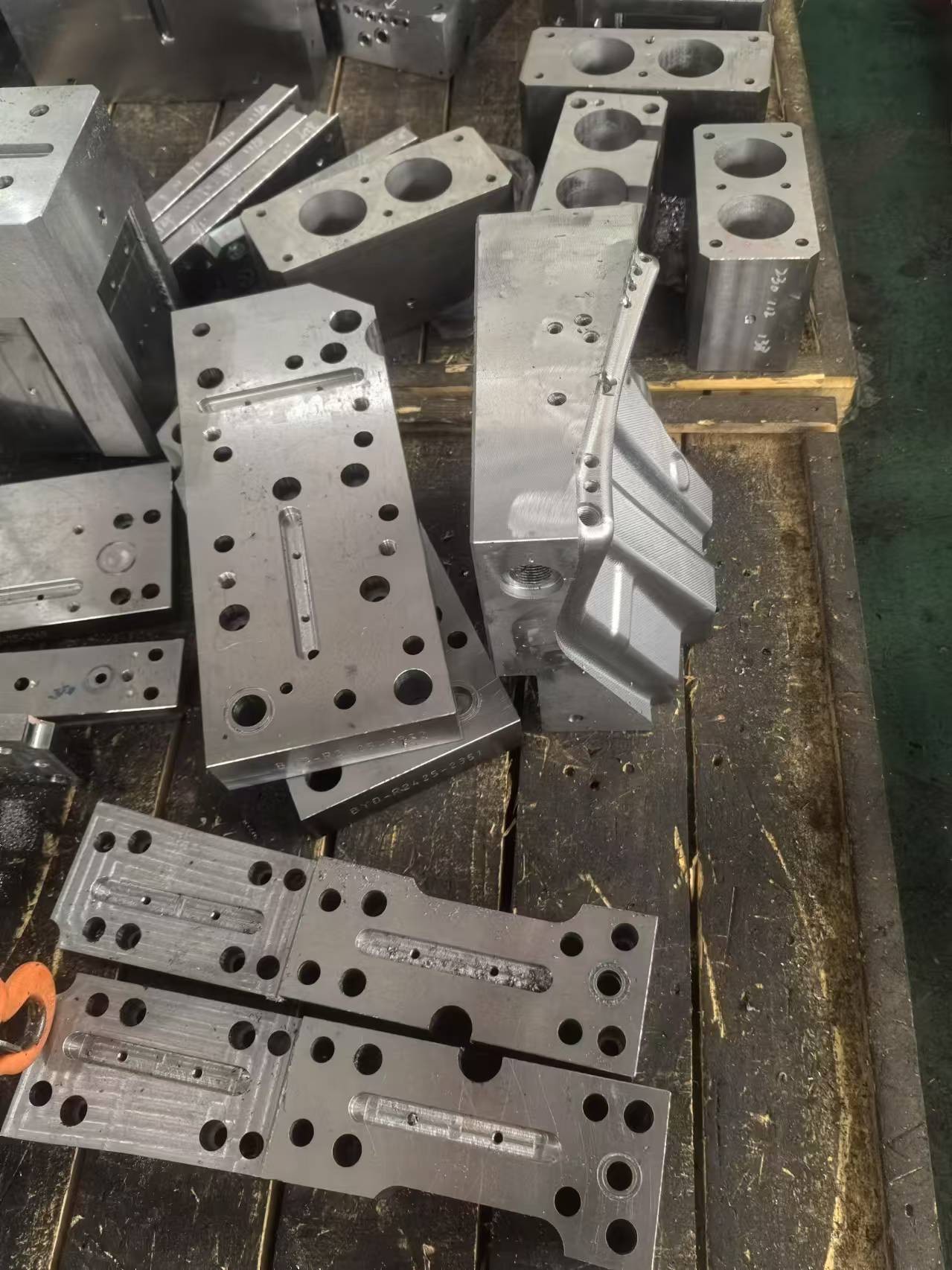

This machine is widely used in hot pressing molds, and the processing of slide blocks and inserts of various molds.

It is suitable for precision machining requirements in mold manufacturing, automotive, machinery and other industries,

and can meet the production needs of high-precision, complex structural parts.

Core Advantages

- 5‑sided One‑time Machining

Equipped with 5‑axis linkage function, it can complete the processing of 5 surfaces of the workpiece in one clamping,

avoiding errors caused by repeated positioning and ensuring high machining accuracy.

- Drilling & Milling Compound Processing

Integrates gun drilling and milling functions, realizing one‑time completion of deep hole drilling, milling, forming and

other processes, greatly shortening the processing flow and improving production efficiency.

- High Precision & Stability

Adopts high‑rigidity body design and precision transmission parts, ensuring stable operation under long‑term

processing, with excellent dimensional accuracy and surface finish.

- Wide Adaptability

Specially optimized for mold slide blocks, inserts and hot pressing molds, with strong processing adaptability

and high practicability.

Matching Product Series

To meet different customer needs, we also provide a complete series of drilling and milling compound machine tools:

- V6HII‑2825: High‑precision, high‑efficiency drilling and milling compound machine, widely used in mold, automotive,

military and aerospace industries, serving customers throughout Asia and Europe.

- V6S‑2520: Economical version of V6HII‑2825, with simpler structure and more compact size, providing cost‑effective

choices for customers with budget constraints.

Product Value

This 5 Axis Vertical Gun Drilling Machine effectively improves processing efficiency, reduces production costs and

ensures product consistency, which is an ideal equipment for precision mold manufacturing and high‑end parts

processing.
